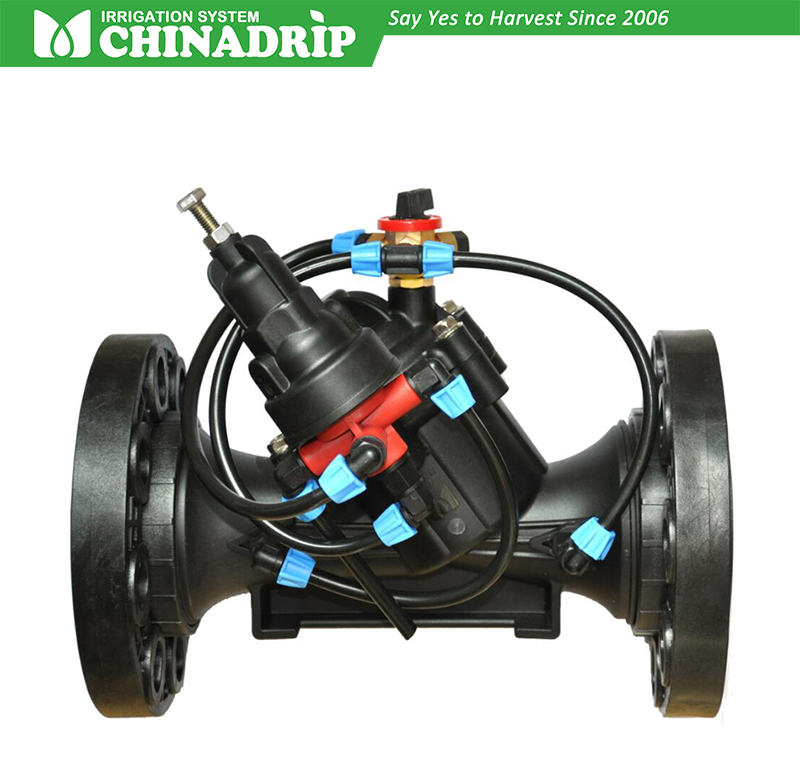

Válvula reductora estándar (con válvula manual de tres vías) Brida 3 "(dn80)
Ventaja:
Válvula de control hidráulico con diafragma inductivo fijo en el interior, cerrado o abierto por control hidráulico.
Tipo Y diseñado, Canal grande y descarga grande, pérdida de cabeza pequeña, sensibilidad de respuesta y alta precisión para
ajuste.
Diafragma inductivo flexible y guía de núcleo de válvula bien fijada, resistencia a la corrosión y sin deformación.
Fácil de operar como control hidráulico, ahorra esfuerzo para cerrar o abrir y mantenimiento conveniente.
Producido por material plástico reforzado con excelente función hidráulica y mecánica, uso por mucho tiempo
Artículo No.:
MHV0180FPago:
T/T, L/COrigen del producto:
Xiamen, ChinaColor:
BlackPuerto de embarque:
Xiamen
- Detalles del producto
Technical Data:
·Size: 2" (Dn50), 3" (Dn80), 4" (Dn 100).
·Connection: Threaded / Flange.
·Working Pressure : 0.35-10bar (5-145psi).
·Max pressure: 10Bar / 145Psi.
·Highest working temperature: 60 °C.
Application:
Suitable to be installed in Main line or Sub Line to avoid the following drip syestem or mircosprinkler
system to damage by high pressure
Working Pressure : 0.35-10bar (5-145psi).
Pressure Adjusting Range: 0.8-6.5bar (11-95psi).
Connecting Mode: Female Thread/ Clamping /Flange
How to operate:
1. Installed this valve to Pipe line according to the arrow pointed to inlet and outlet. O-Ring should be used if installed with flange.
2. Ensure all connectors & adaptors are well tighten and no leakage. Or should be fixed again
3. Operating:
a. Turn the Three Way Control Valve to "AUTO".
b. Install a Pressure Gauge at the outlet of pressure reducing valve.
c. Loose the Locking Nut at the top of Pilot.
d. Adjust the Screw until the pressure up to requirement.
e. Tighen Locking Nut.
4. For closing Valve, turn the Three Way Control Valve to "CLOSE".
